Egypt-Japan University of Science and Technology

Cairo, EGYPT

Master Plan

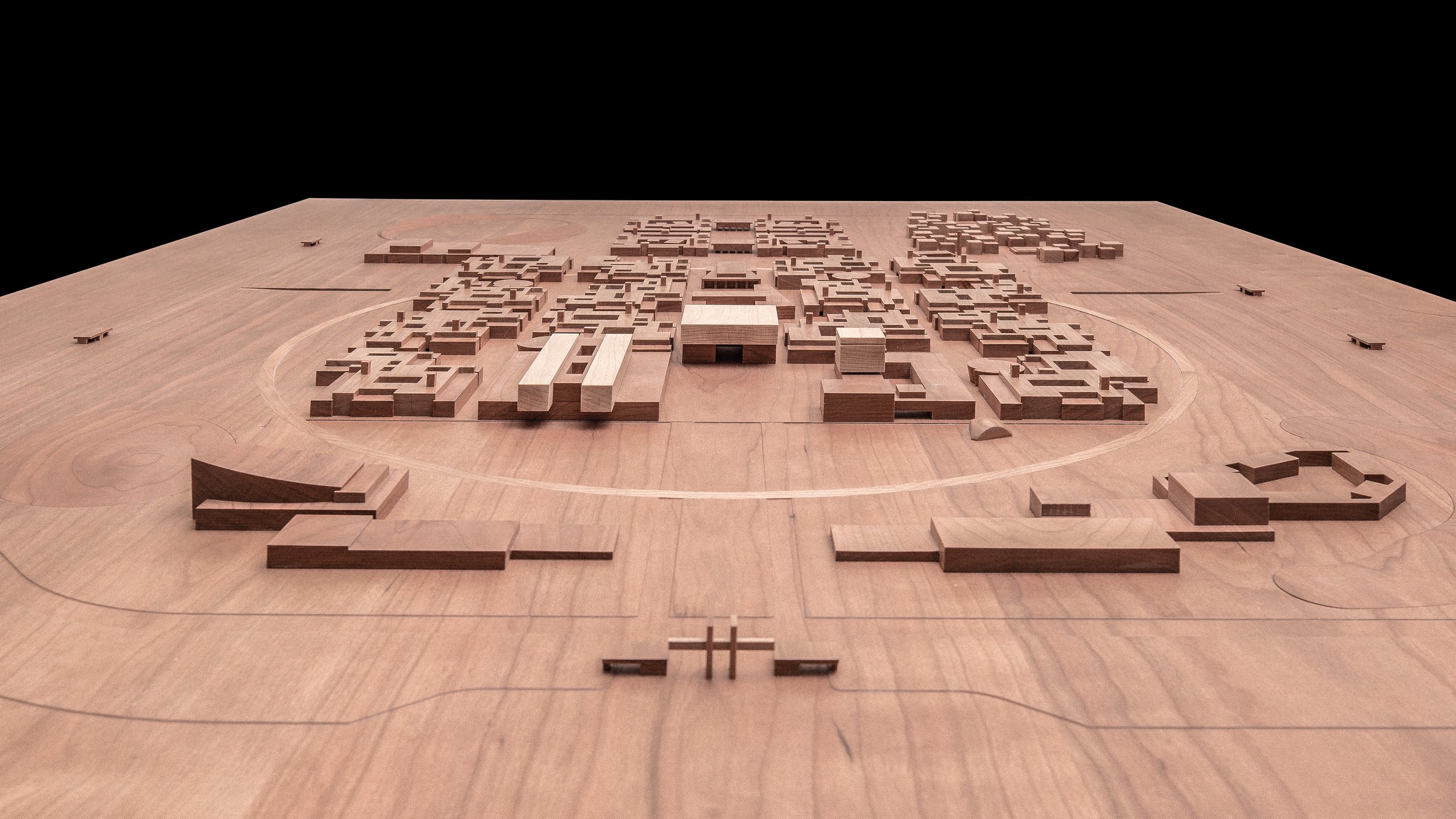

Following the first-place win in the 2009 competition, the master plan development commenced. However, due to subsequent political turmoil—including the collapse of the Mubarak administration and frequent government transitions—the submission and revision of proposals became an ongoing process. The final master plan, submitted in 2014, underwent some scale reductions to align with local construction techniques and budget constraints. Nevertheless, it introduced a practical and implementable system that broke away from the traditional compartmentalized university campus model. Key elements of the plan included an underground tunnel network to eliminate vehicular traffic, wind pathways and water features for temperature regulation, and a high-density architectural layout providing ample shading. The spatial organization was inspired by the Vitruvian human body, while laboratory placements were designed to accommodate future academic expansion and flexibility.
Architectural Design
(Volume / Reviving Traditional Ecological Solutions / Utilization of Local Materials & Construction Techniques)

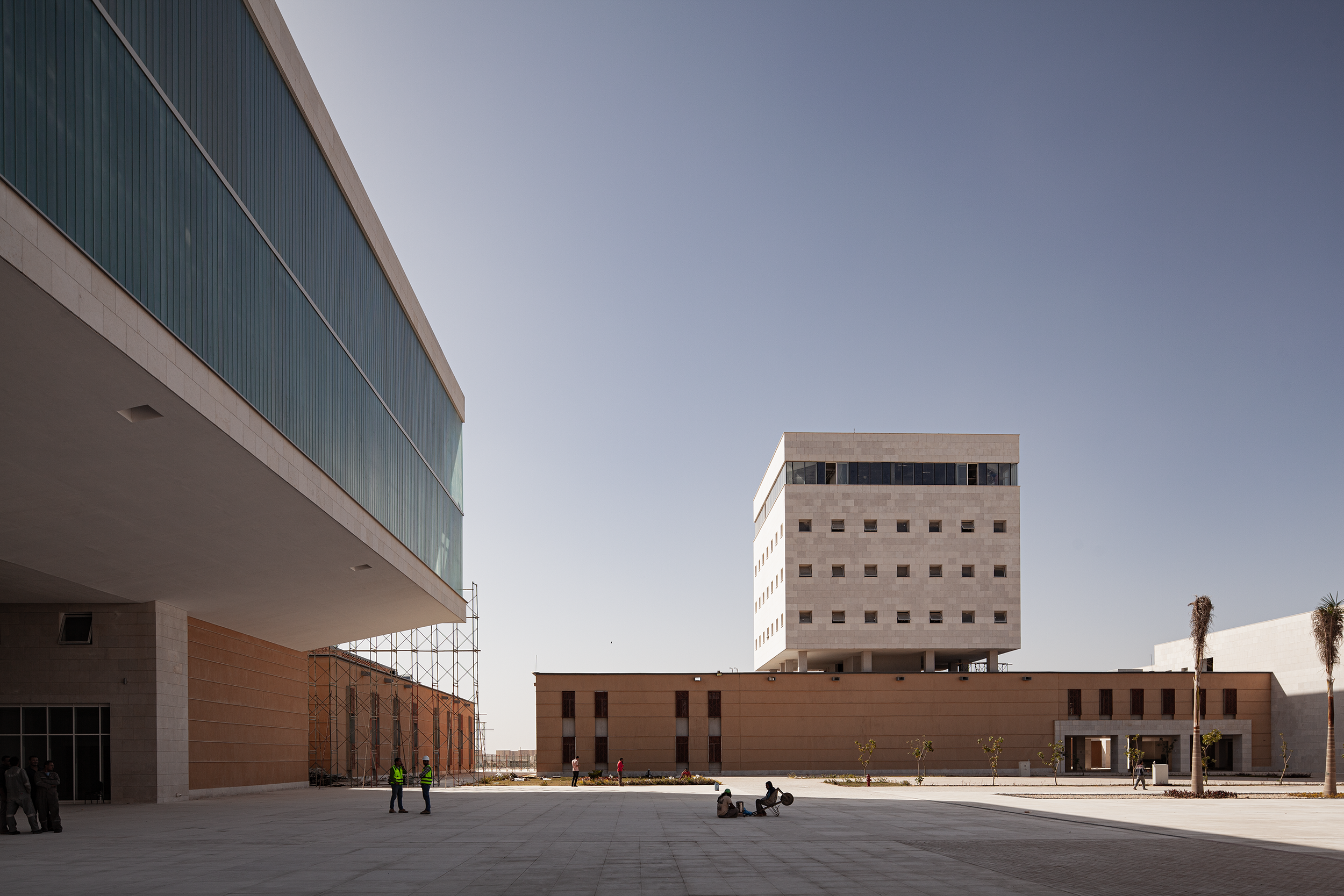

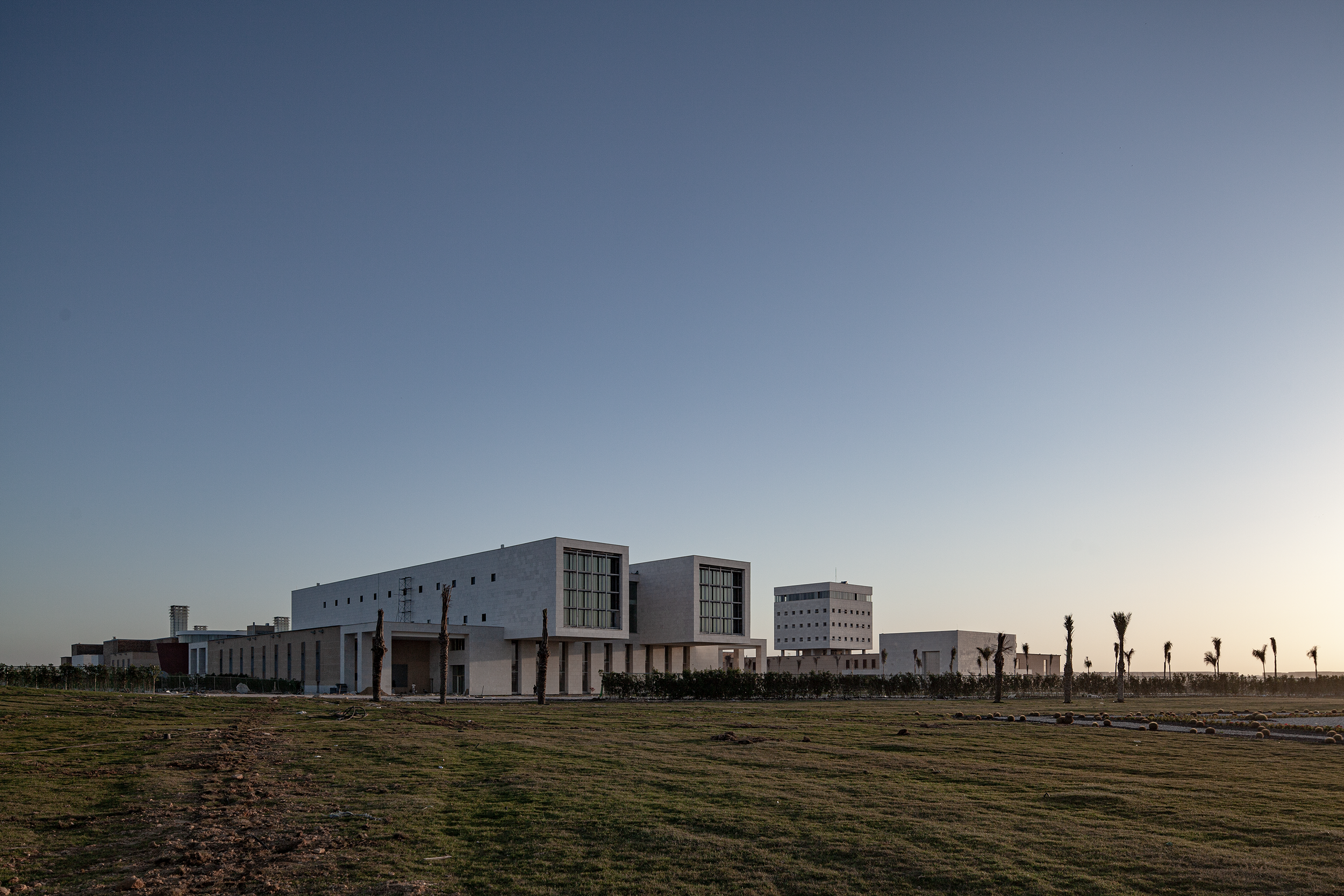

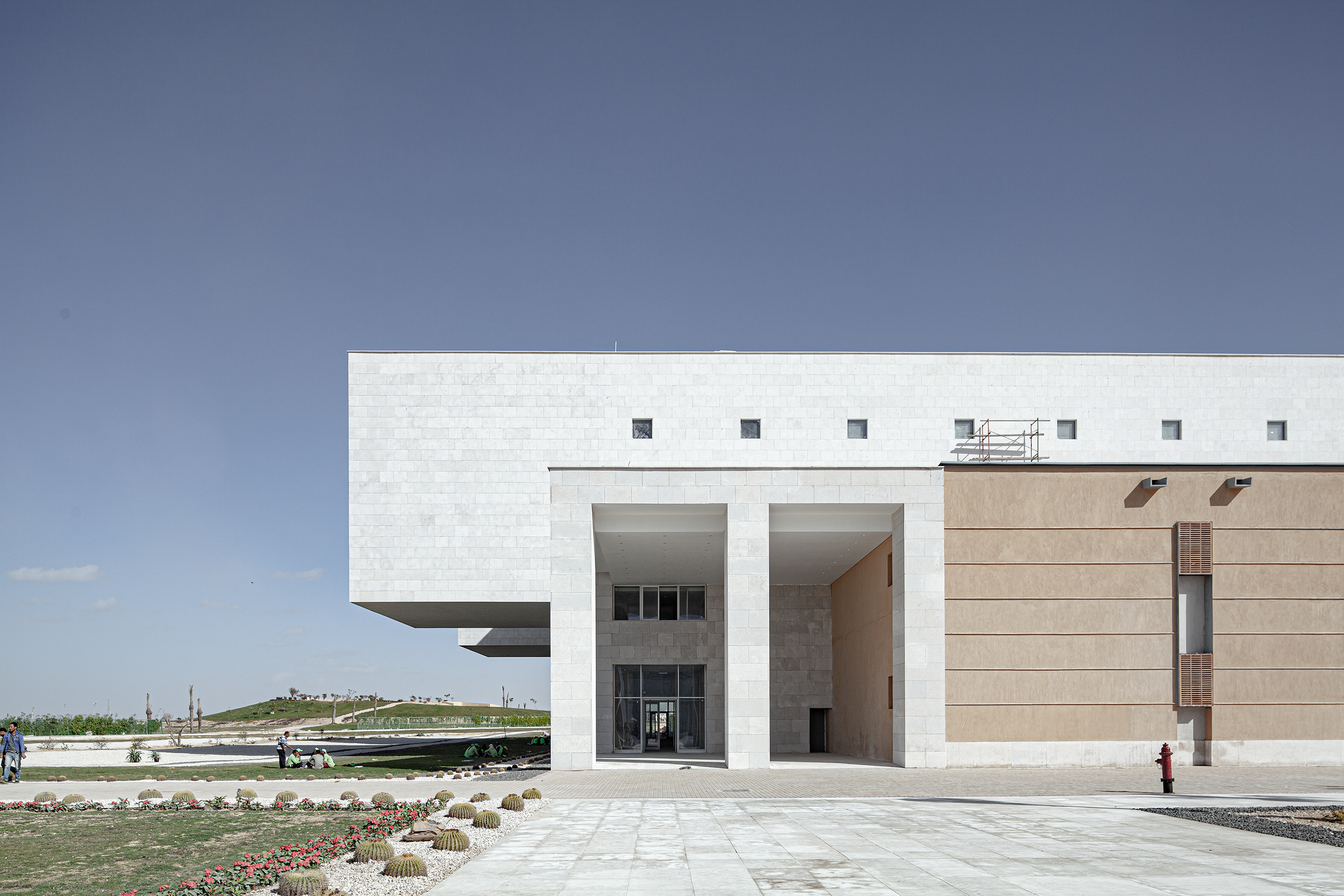

Based on the master plan, Phase 1 design commenced in 2015, focusing on the university’s core functions, including academic buildings, administrative offices, and a central library. A consistent architectural language was developed across the buildings. The volumetric composition consists of a lower podium housing essential functions such as classrooms and laboratories, topped by a cube containing specialized facilities, including the library and advanced research centers.
The façade materials were carefully selected to suit the desert climate, employing stucco finishes and locally sourced white marble to ensure durability and integration with the surrounding environment.

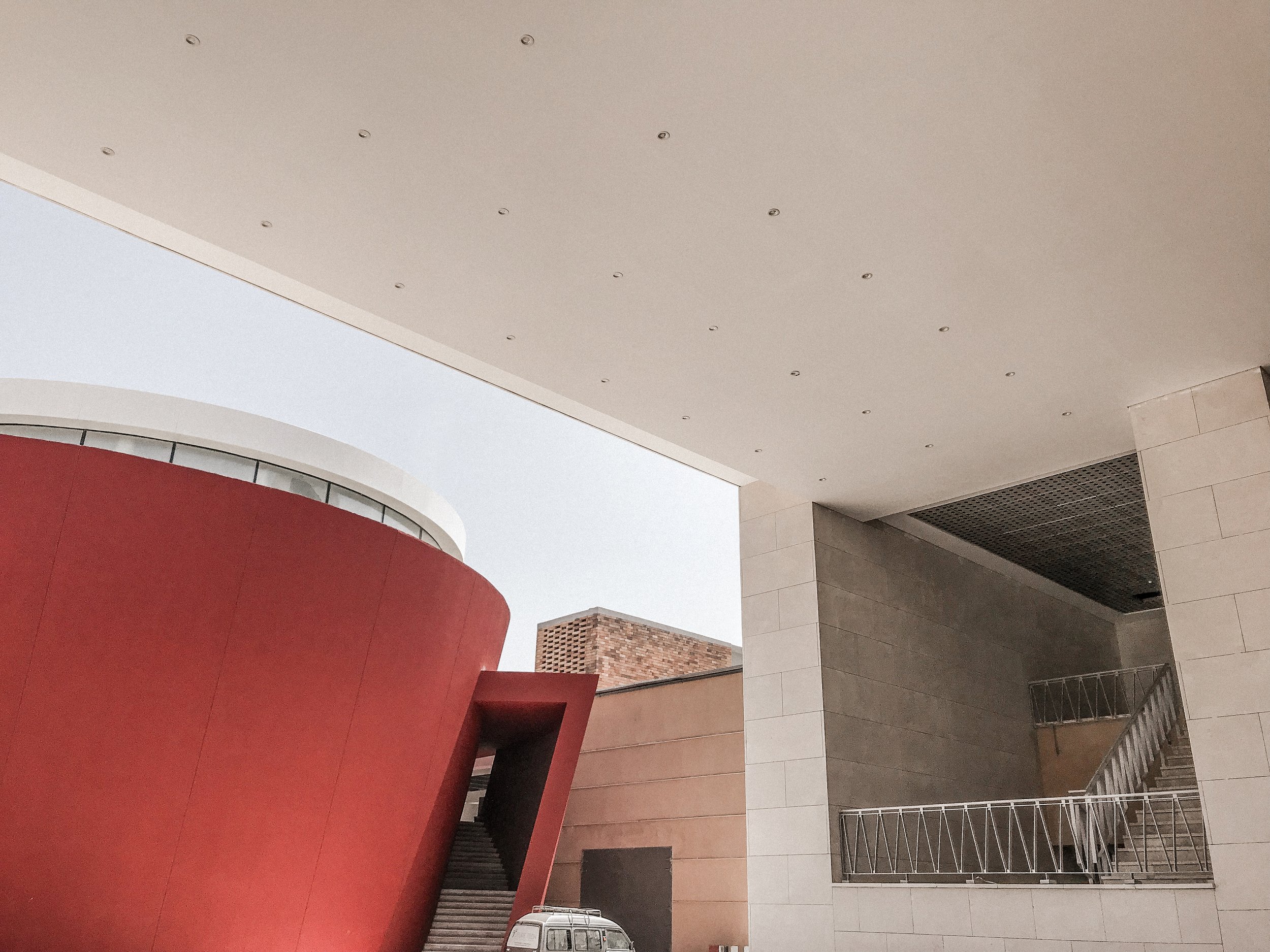

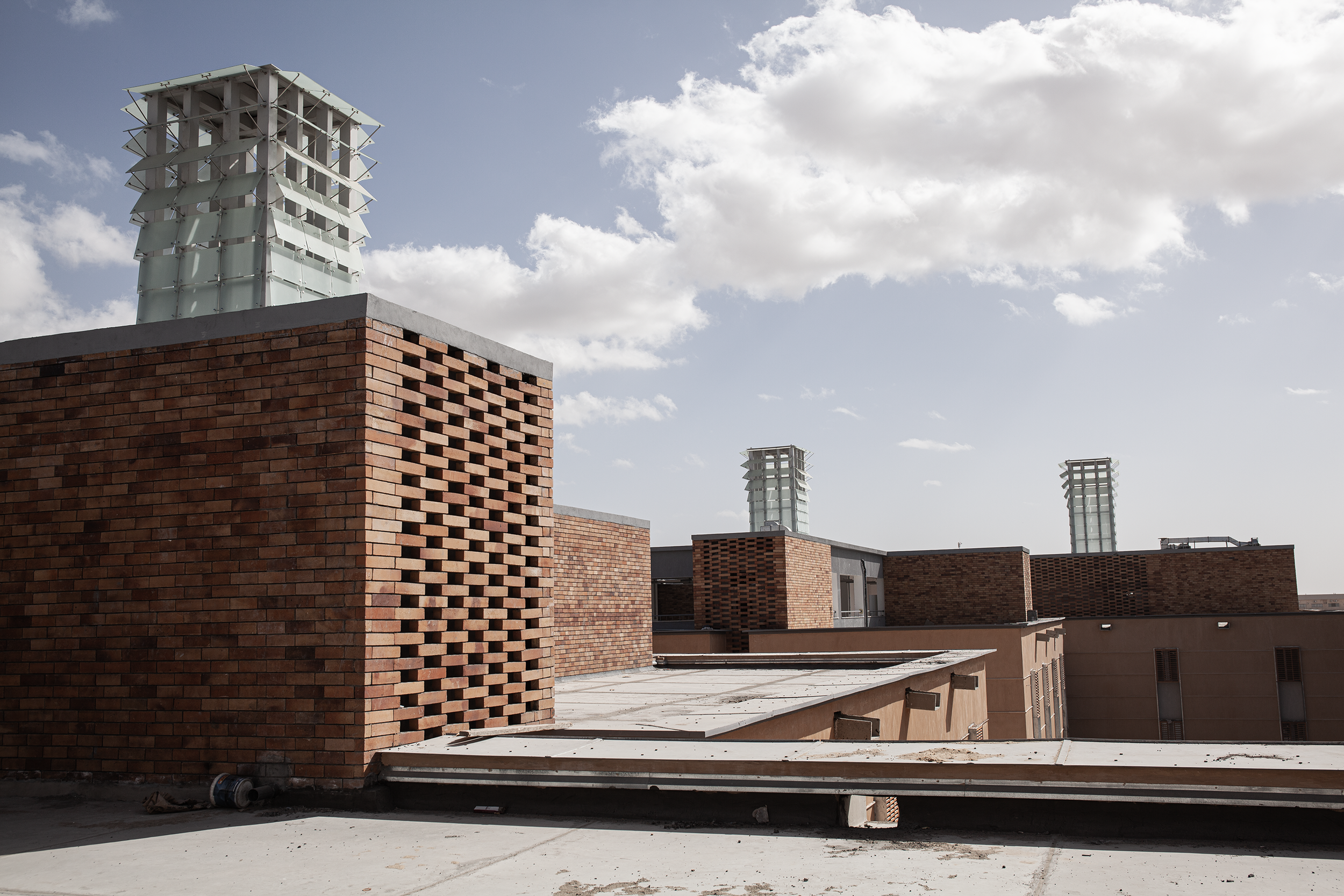

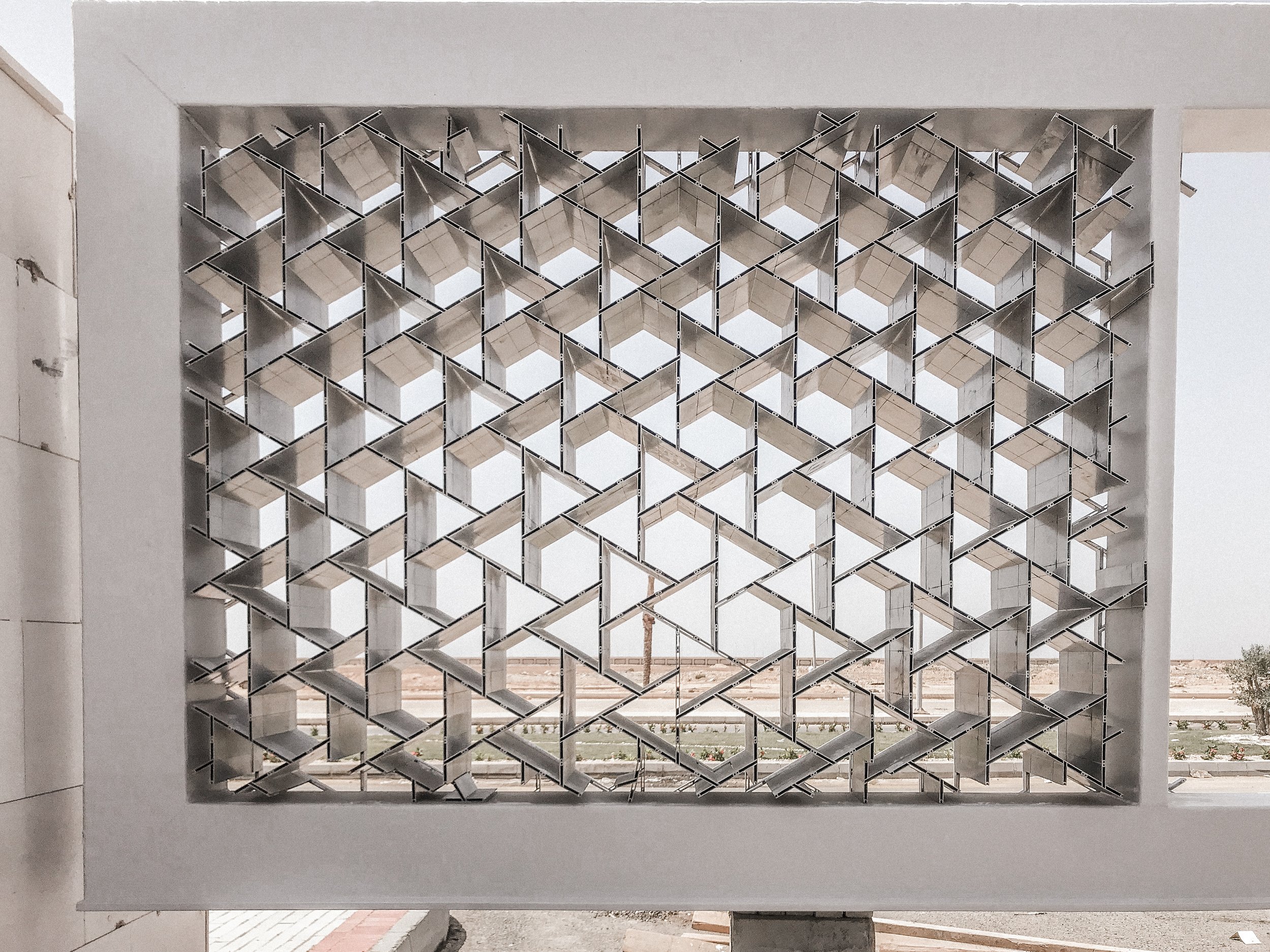

To enhance sustainability and indoor environmental quality, academic buildings incorporate light courts for natural daylight and ventilation, along with solar chimneys to optimize airflow—reviving traditional ecological solutions within a contemporary framework. Additionally, regional architectural elements such as Mashrabiya screens were reinterpreted in a modern manner, creating a striking contrast between the exterior and interior. The outer façade employs rough-textured materials to withstand harsh environmental conditions, while the interiors feature polished surfaces, reflecting the high-tech nature of the research facilities housed within.

マスタープラン

2009年に行われたコンペにおいて1等を獲得後、マスタープランの計画に着手した。しかし、ムバラク政権の崩壊や政府の頻繁な交代など、その後の政治的混乱に伴い、案の提出と変更が繰り返された。2014年に最終的に提出されたマスタープランでは、現地の建設技術や予算に対応するために一部規模を縮小する部分はあったものの、従来の縦割り型大学キャンパスからの脱却を目指し、実現可能なシステムを提案した。主なシステムには、地下トンネルネットワークで自動車を排除すること、風の道や池で風温を調整すること、日陰を提供するための密度の高い建築計画などが含まれており、ウィトルウィウス的人体を基にした配置や、将来的な学部・学科の可変性にも対応するラボの配置も考慮された。

建築設計(ボリューム/伝統的な環境配慮型の手法の再生/地域の建築材料・技術の活用)

以上のマスタープランに基づき、2015年にフェーズ1の建築設計が開始された。フェーズ1では、大学の中心機能となる校舎、事務棟、図書館などの建物が計画された。これらの建物のデザインには、以下のような共通する型が適用された。建物のボリュームは、下部のポディウムと上部のキューブに分かれており、下部には研究室や教室など基本的な機能が、上部には特別な機能(図書館、先端研究センター等)が配置されている。また、外装には現地の砂漠地帯に適した自然材料(スタッコ仕上げ)と現地産の白色大理石が使用されている。

また、アカデミックビルには自然光と通風を確保するための光庭が設けられ、ソーラーチムニーも取り入れられるなど、伝統的な環境配慮型の手法が再生されている。さらに、地域の伝統的な建築要素や技術(マシュラビヤ・スクリーンなど)を現代的に再解釈し、外観と内観との間に印象的な対比を生んでいる。外装は過酷な環境に耐えうる粗い質感の素材を用い、一方で内部は最先端の研究設備にふさわしい光沢のあるデザインが採用されている。

  • Location : Alexandria, EGYPT

    Type of Program : University

    Owner/Client : EJUST, Ministry of Higher Education, Egypt

    Design Period : 2013-2014

    Construction Period : 2014-2019

    Discipline : Masterplan, Architecture

    Site Area : 840,000 sqm

    Footprint Area : 142,800 sqm

    Total Floor Area : 226,000sqm

    Structure : Steel and Reinforced Concrete

  • Lead Architect : Arata Isozaki and Associates (Competition Stage), AAarchitects Inc. (Concept Design to Construction Supervision Stage)

    Assoc. Architect : MZECH Consulting Engineers

    Landscape : Sites International

    Geotechnical : United Consulting Group

    Environmental : Ove Arup & Partners Japan Limited

    Infrastructure : Shaker Consultancy Group

    IT : Shen Milsom Wilke

    Quantity Surveyor: Proctal

  • 敷地 : アレクサンドリア, エジプト

    プログラム : 大学

    施主 : EJUST, 高等教育機関, エジプト

    設計期間 : 2013-2014

    施工期間 : 2014-2019

    分野 : マスタープラン, 意匠設計

    敷地面積 : 840,000 ㎡

    建築面積 : 142,800 ㎡

    延床面積 : 226,000 ㎡

    構造 : 鉄筋コンクリート造

  • リードアーキテクト : 磯崎新アトリエ (コンペのみ), AAarchitects Inc. (コンセプトデザインから施工監理段階まで)

    アソシエーツアーキテクト : MZECH Consulting Engineers

    ランドスケープ : Sites International

    ジェオテクニカルグループ : United Consulting Group

    環境設備 : オーヴ・アラップ・アンド・パートナーズ・ジャパン・リミテッド

    インフラ整備 : Shaker Consultancy Group

    IT : Shen Milsom Wilke

    マネジメント : Proctal
