Colombia Pavilion Osaka Expo 2025
Osaka, JAPAN
"MANY YEARS LATER, as he faced the firing squad, Colonel Aureliano Buendía was to remember that distant afternoon when his father took him to discover ice."— G. García Márquez, One Hundred Years of Solitude (translated by Gregory Rabassa).

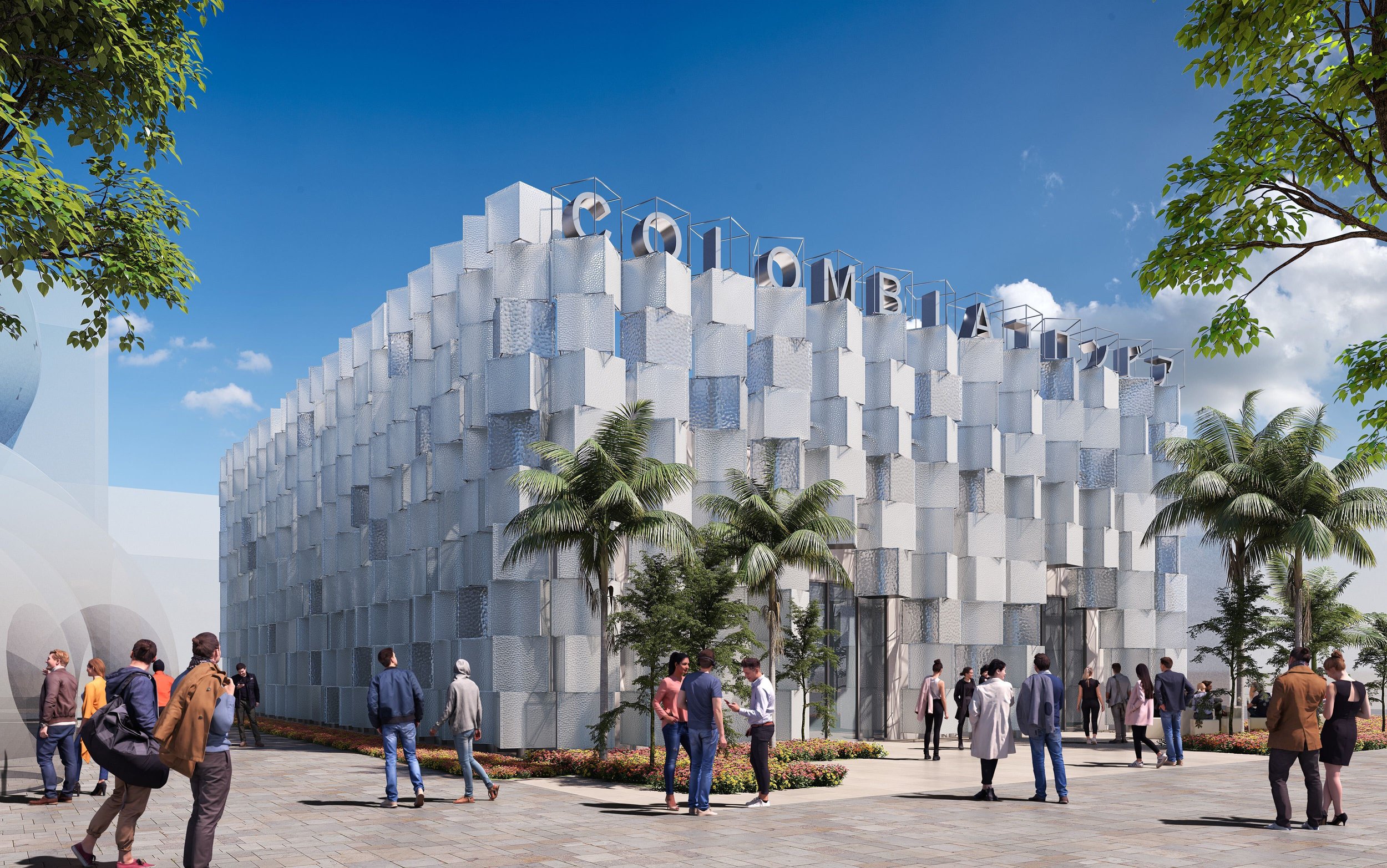

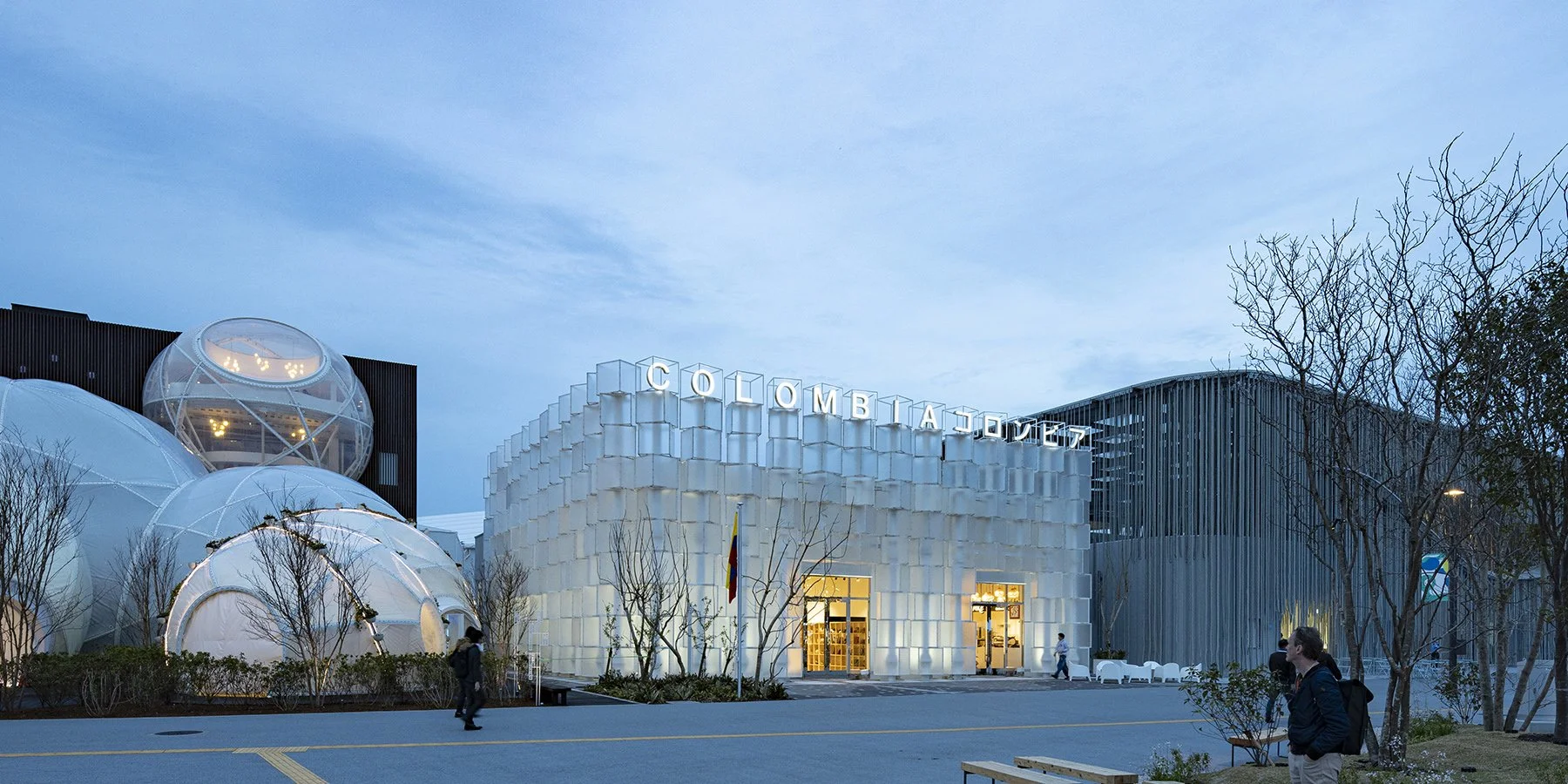

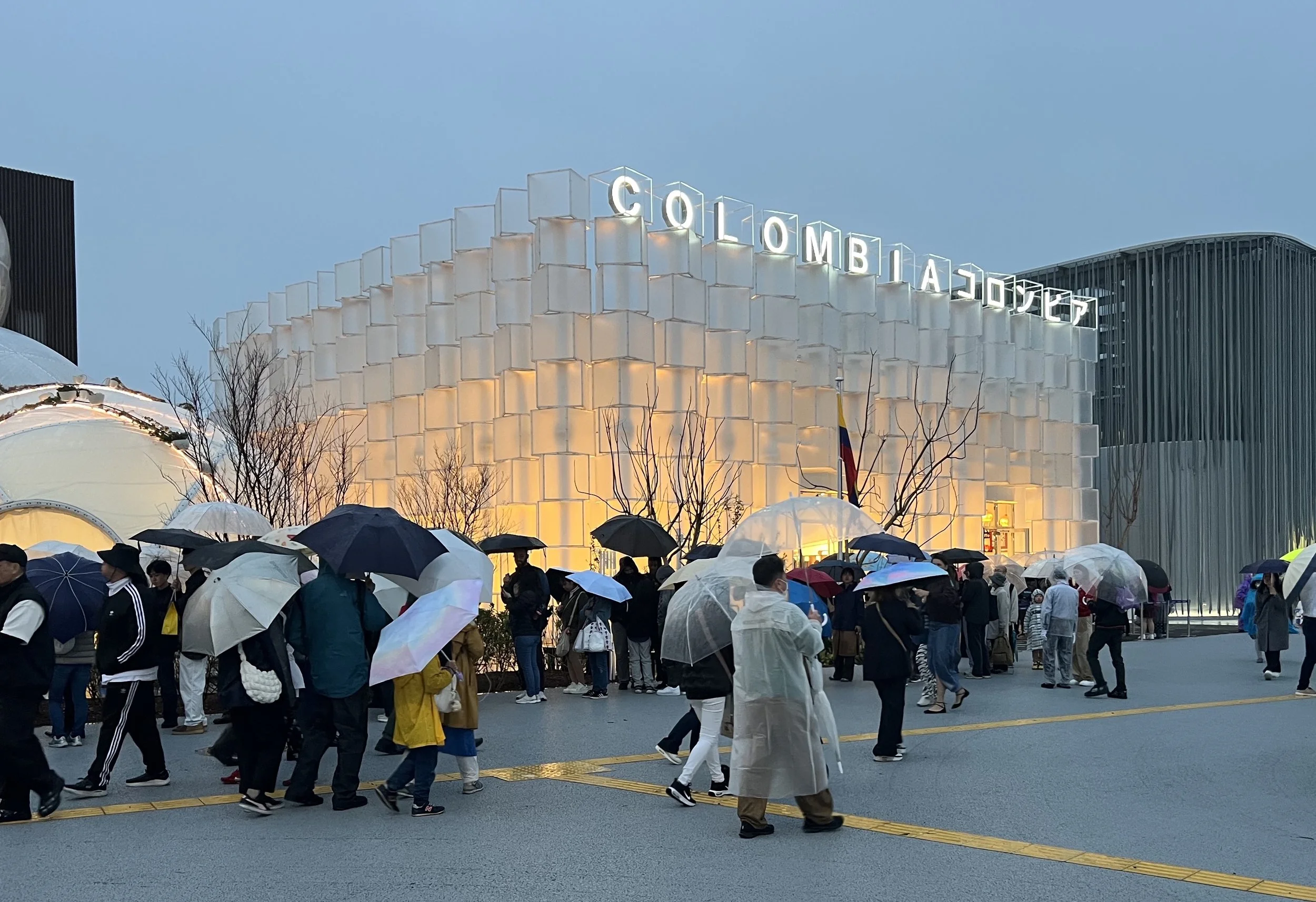

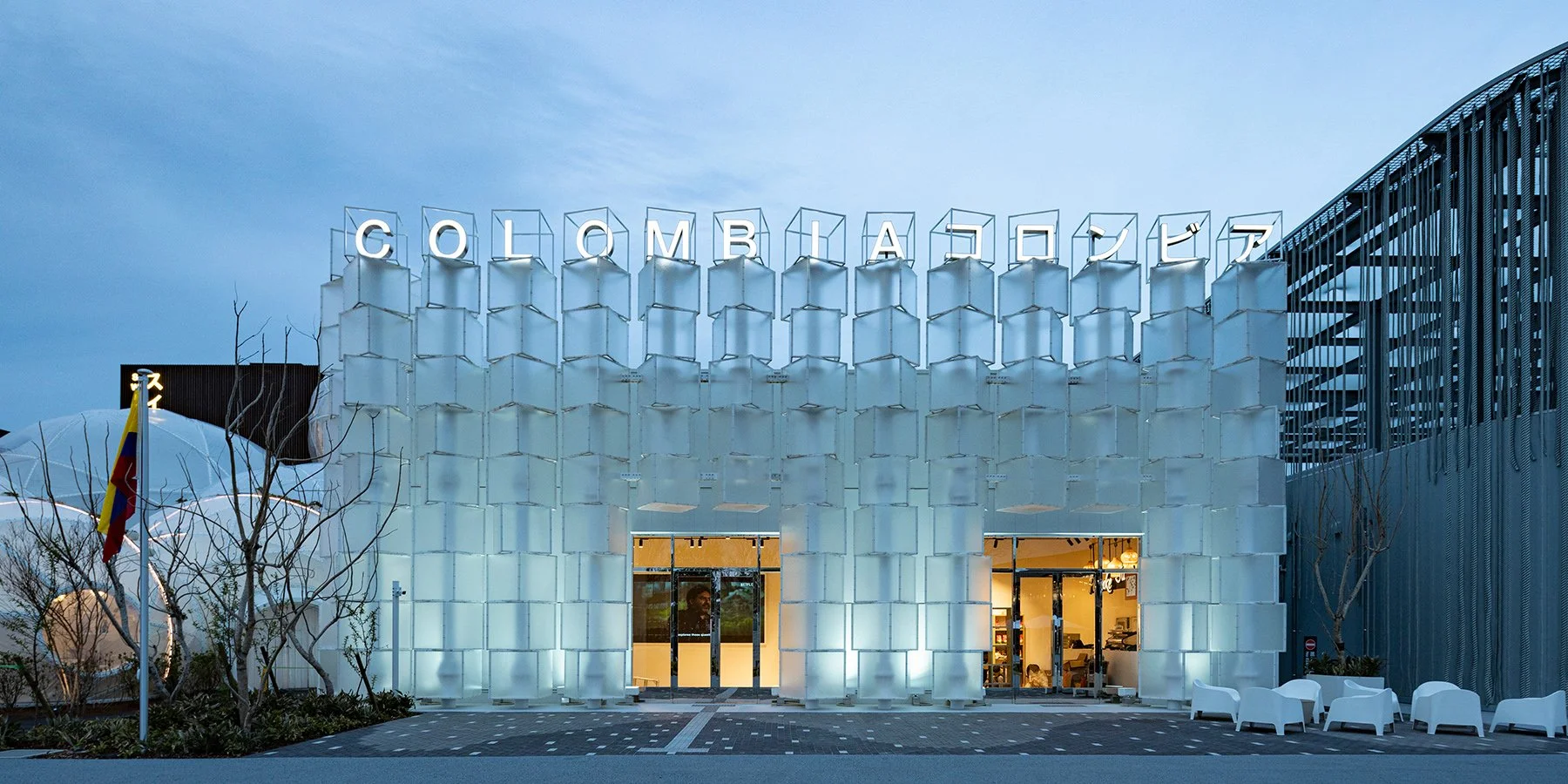

In One Hundred Years of Solitude, the Colombian Nobel Prize-winning author G. García Márquez vividly captures, through his magic realism, the moment a boy witnesses ice for the first time in the mythical town of Macondo. Drawing inspiration from this poignant scene, the Colombian Pavilion at the Osaka-Kansai Expo embraces the concept of ICE CUBE, featuring a façade design composed of numerous translucent cubes set in various directions, to convey a sense of movement and articulation. At first, the façade presents the visitors with an unlikely association between the country of Colombia and Ice Cubes, only for this connection to unravel as the visitors venture through the pavilion.

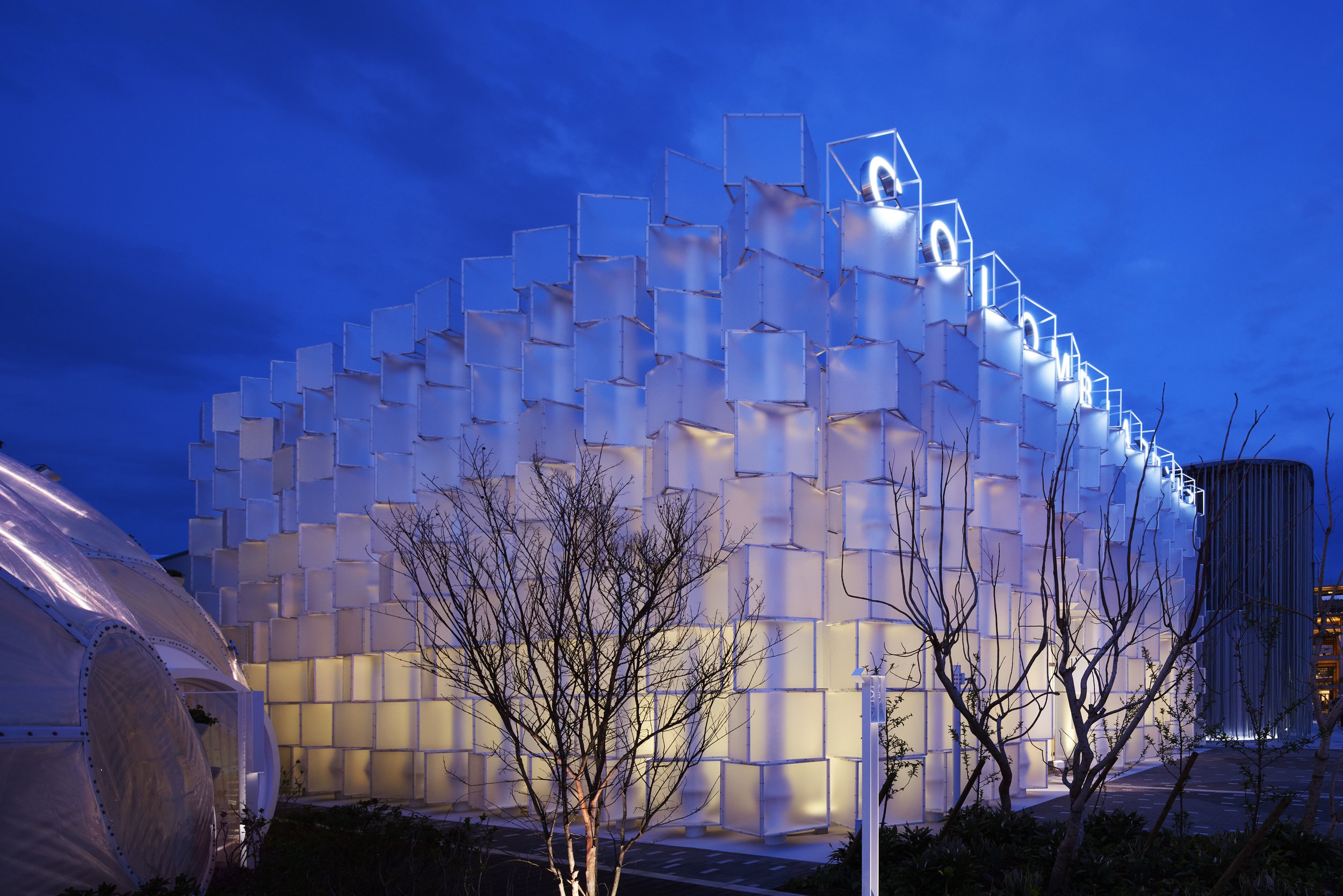

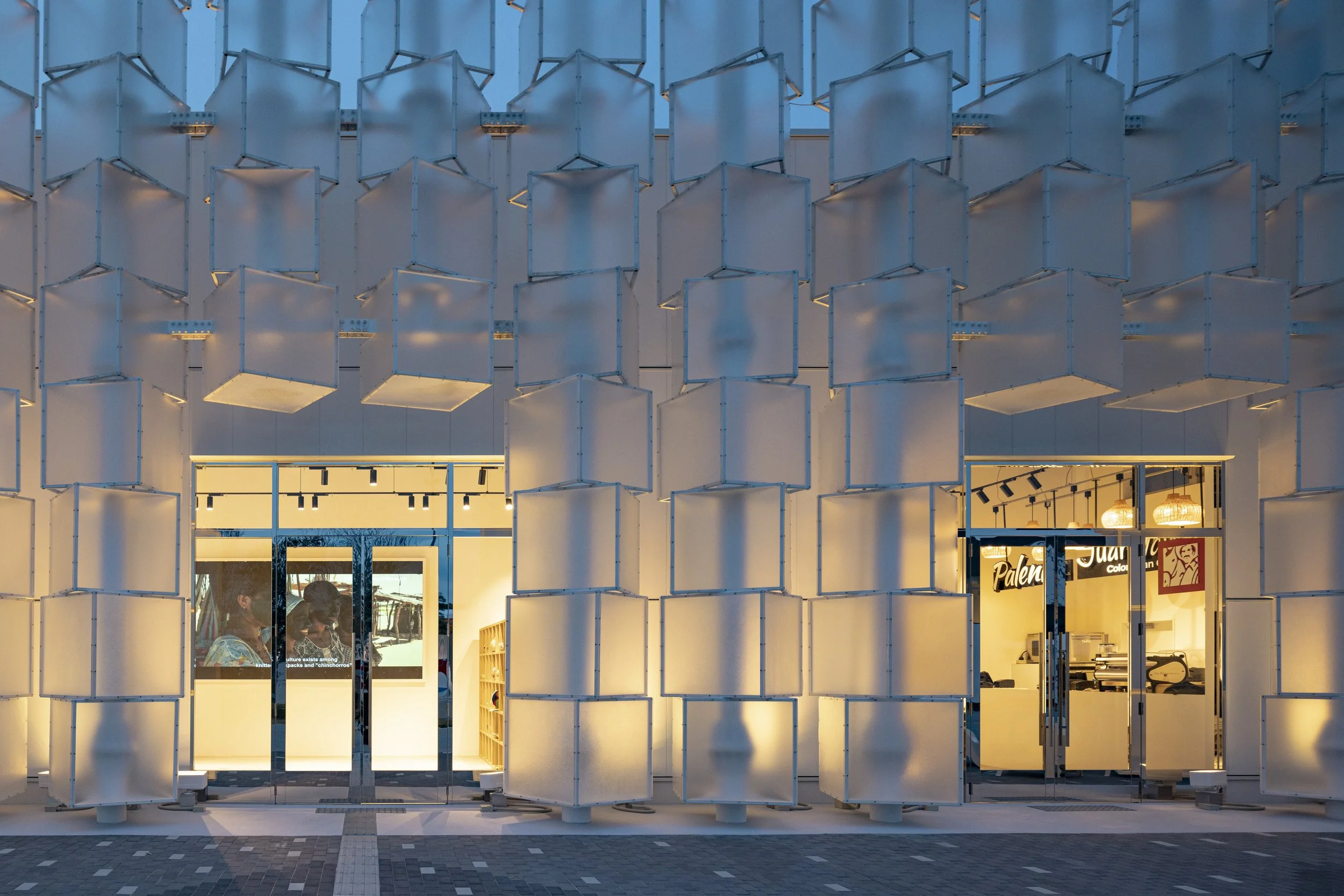

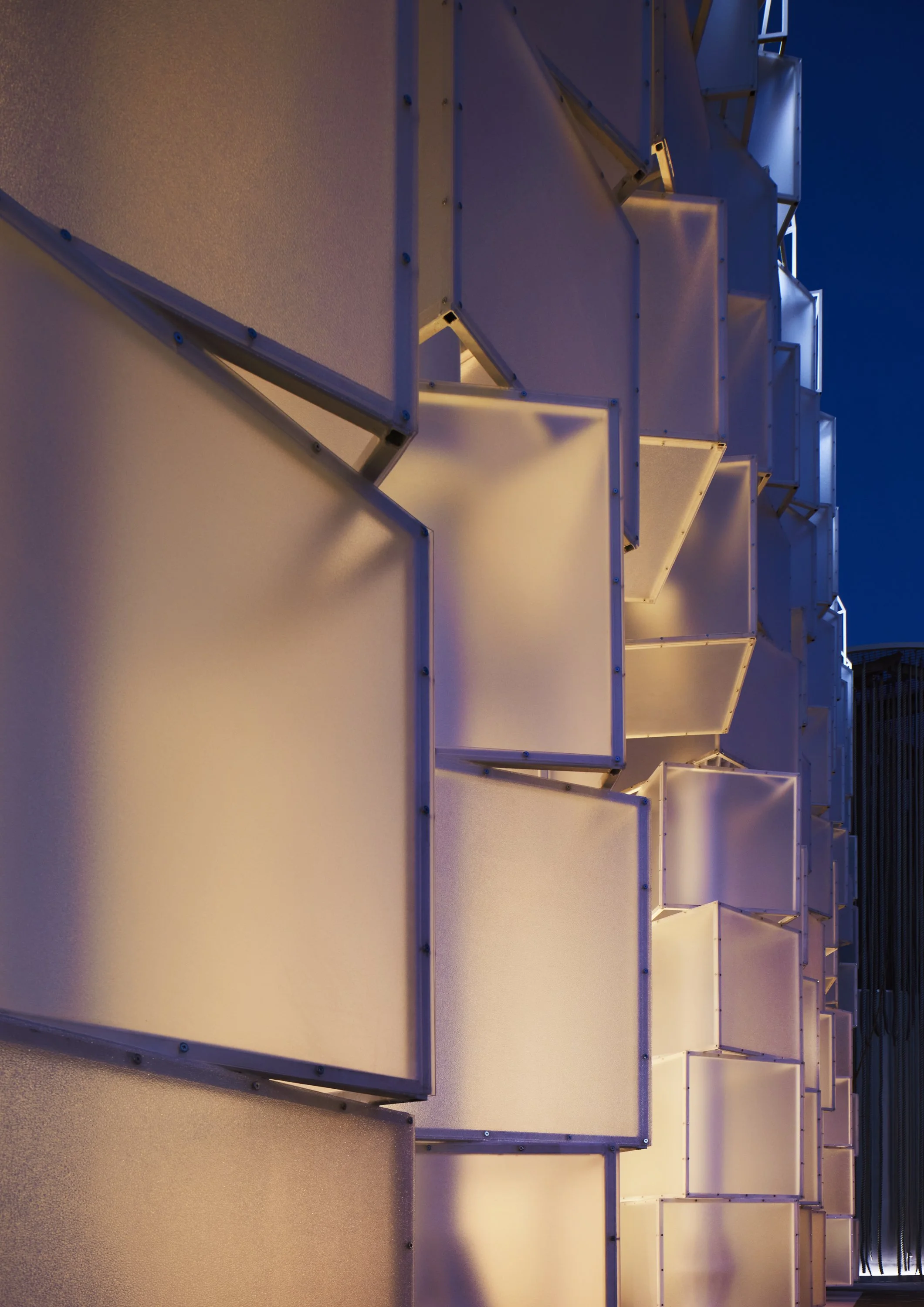

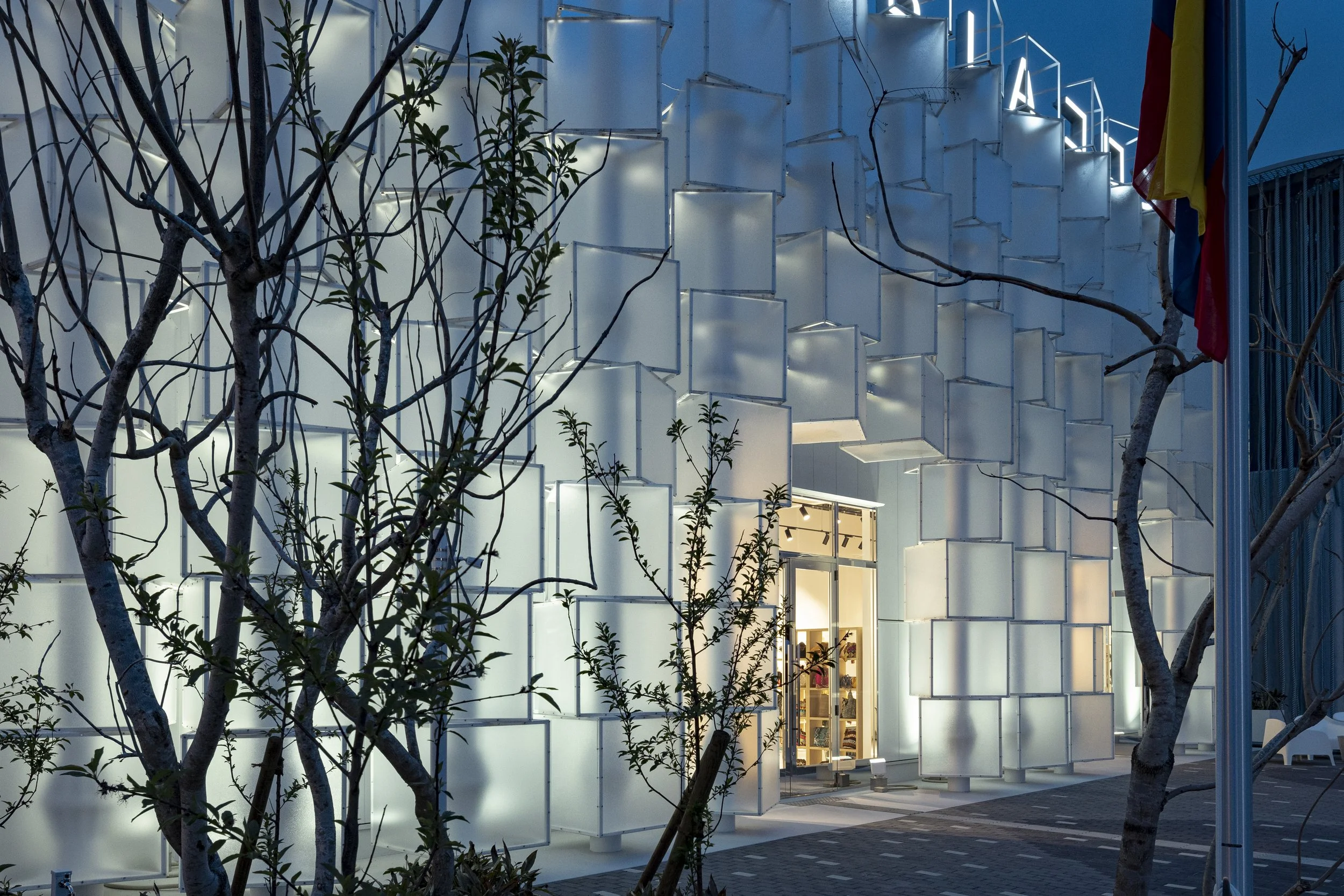

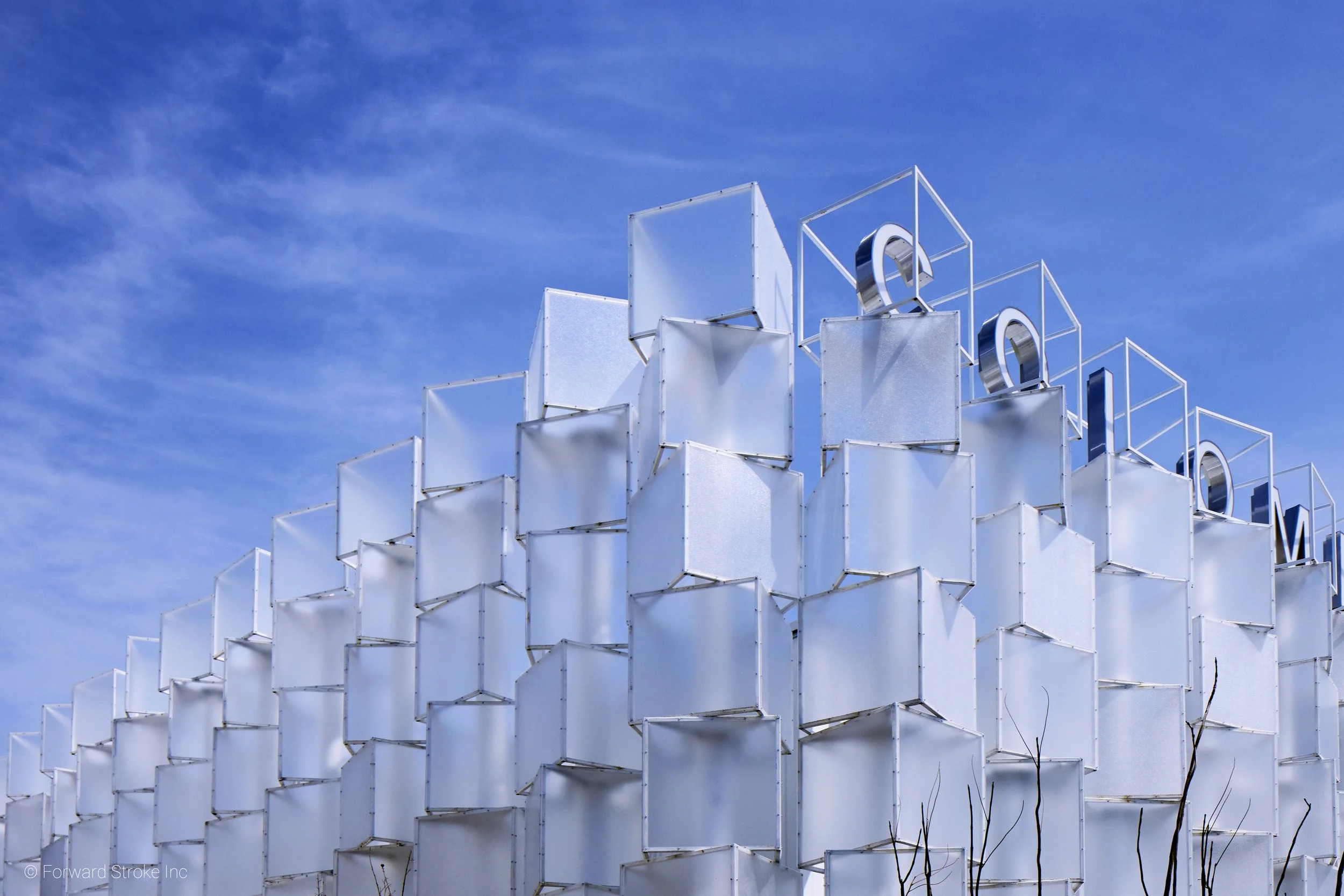

The façade ice cubes are constructed from semi-transparent polycarbonate panels and illuminated with lights that can be color-controlled, allowing the façade to take on different expressions throughout the day and night. This dynamic lighting will captivate visitors' attention, serving as a platform to showcase Colombian culture during the Expo. Inside the pavilion, visitors can savor Colombian coffee, a national specialty, at a bar counter located in the entrance hall.

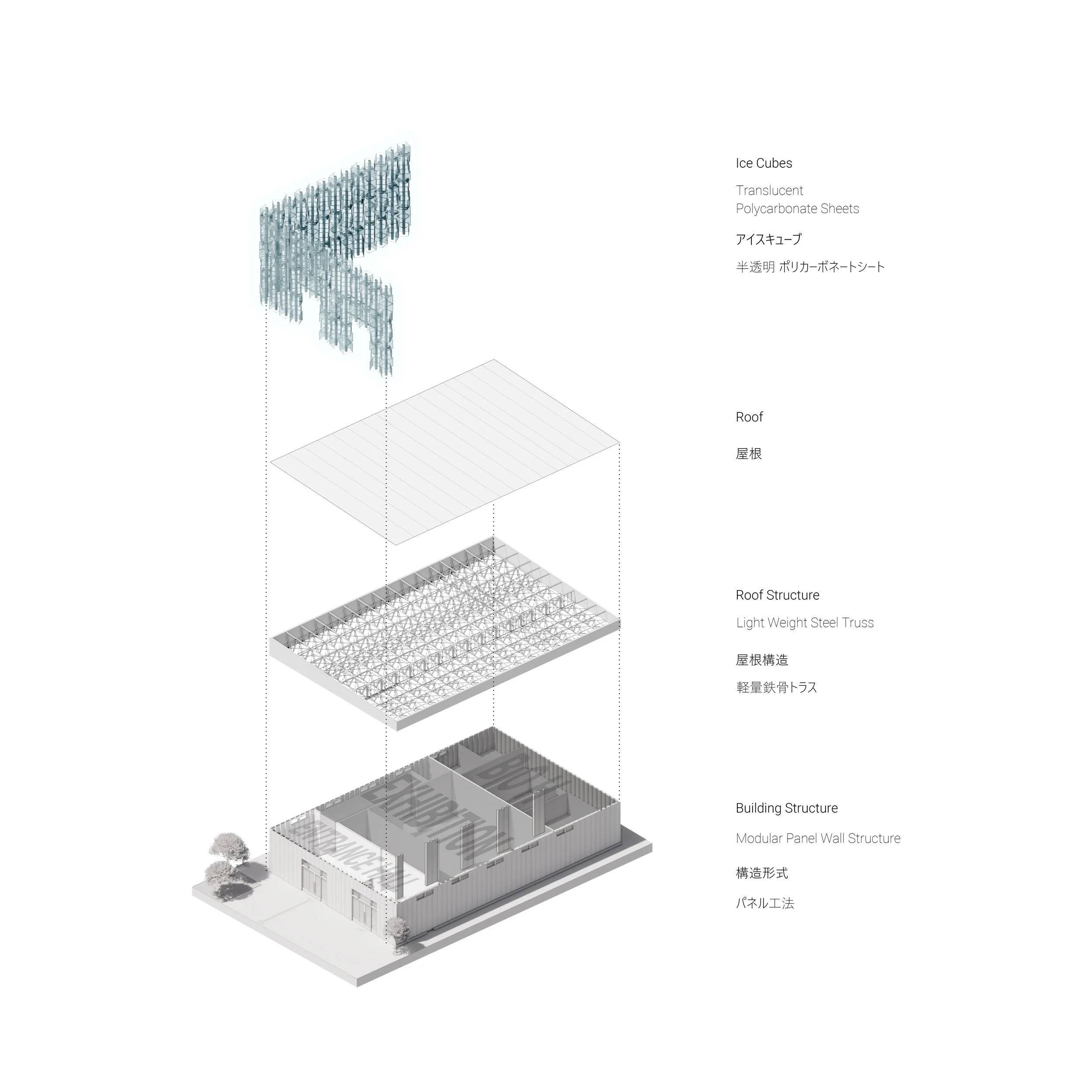

Given the temporary nature of Expo pavilions, the design focused on a short construction period, low cost, and recyclable materials. The main structure was built using a prefabricated light steel frame system, sitting on a floating foundation to mitigate the limitations of the soil conditions on site.

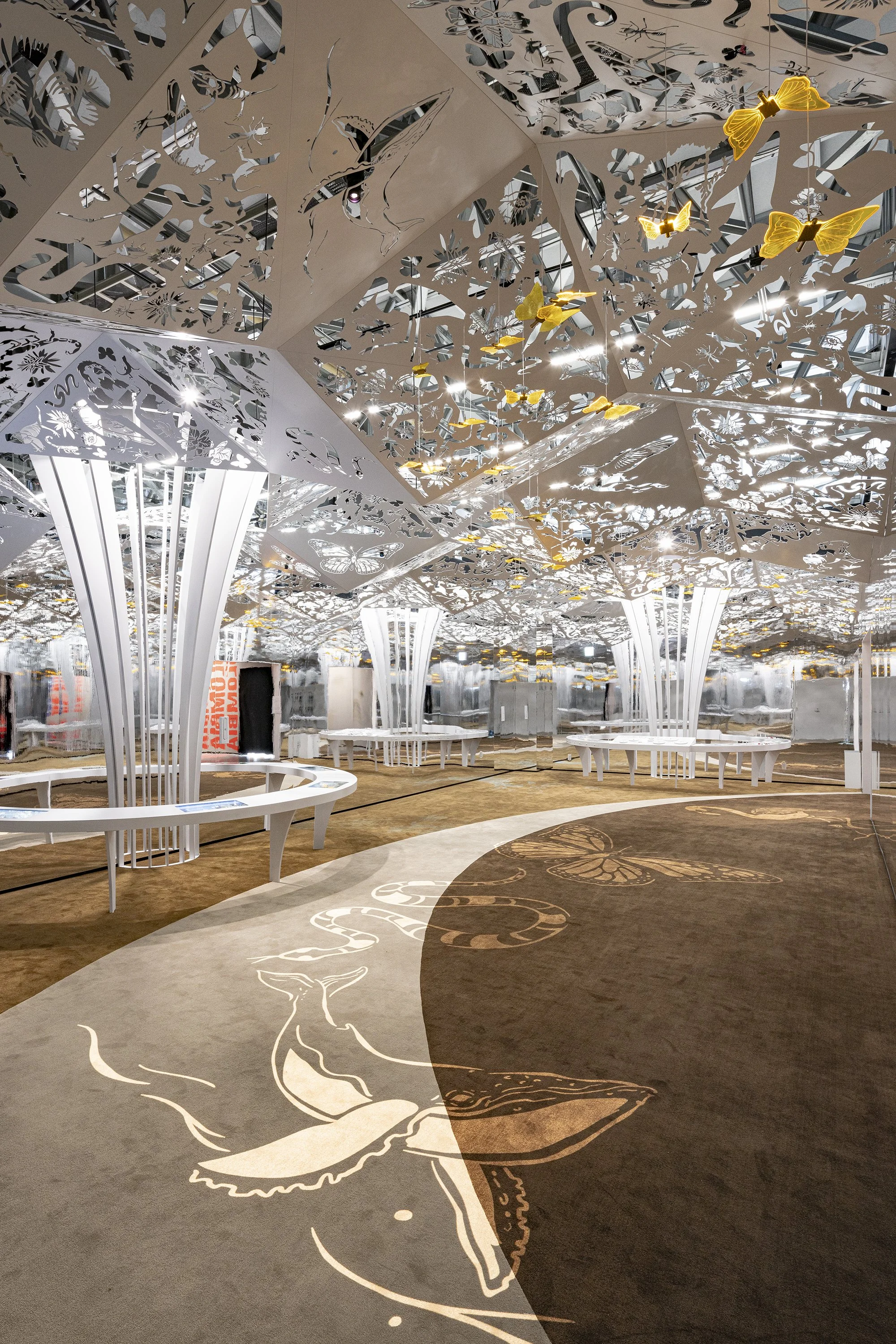

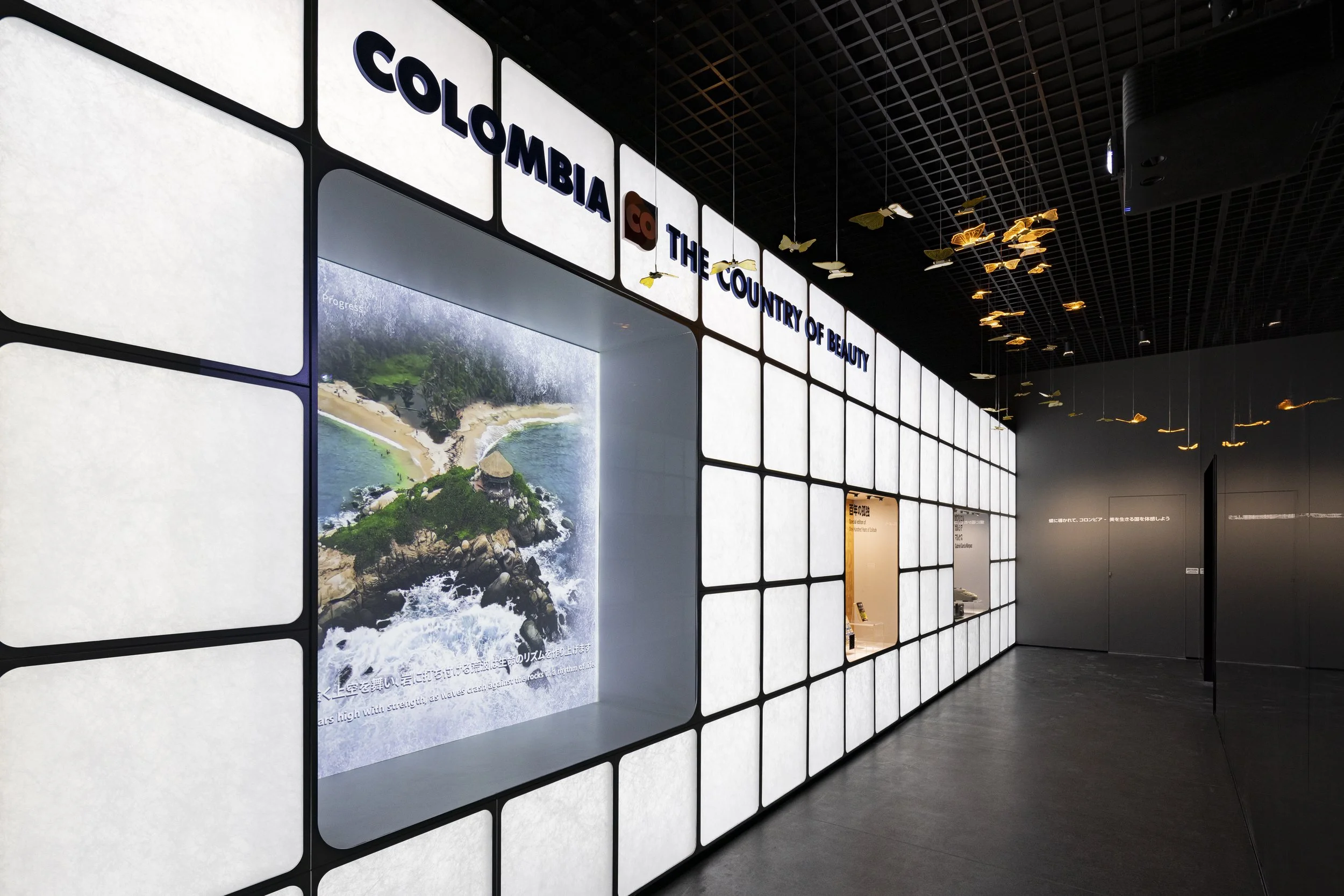

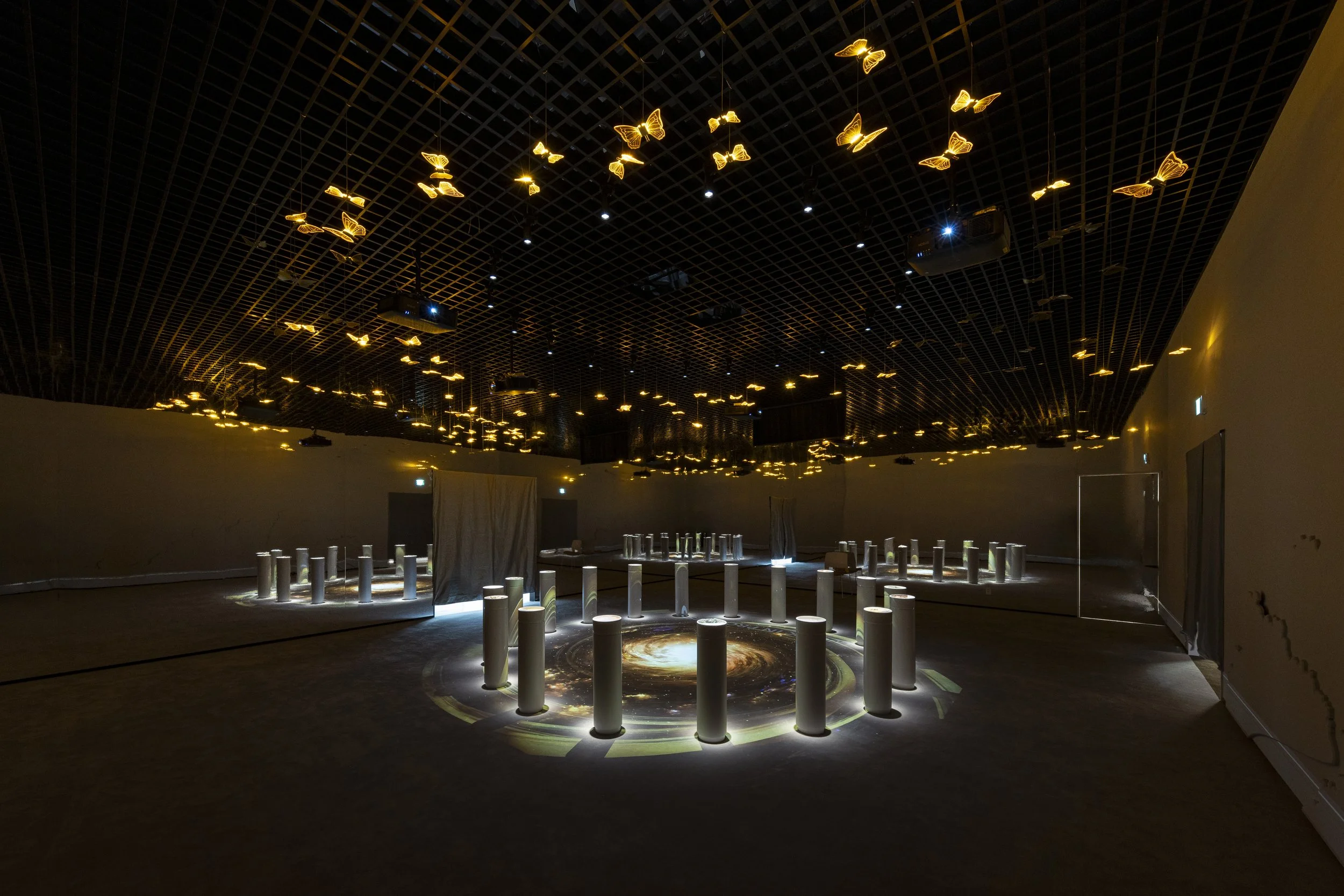

The simple, spacious structure of the light steel frame system allows for flexibility in accommodating various exhibitions, while part of the dug-out space for the floating foundation is efficiently utilized as a mezzanine floor for back-of-house areas. Combining the story-driven façade design with a practical, environmentally sustainable main building, the Colombia Pavilion stands as a fitting and striking presence at the Expo—a place where different cultures converge.
At the same time, the decision to utilize a modular prefabricated light steel structure was driven not only by the need to accelerate construction but also by a vision for the pavilion’s life beyond the temporary Expo event. Its distinctive structural design ensures adaptability, enabling a seamless transition to a more permanent setting beyond the Expo grounds. Discussions are already underway to define the next chapter of its journey.
「長い歳月が流れて銃殺隊の前に立つはめになったとき、恐らくアウレリャノ・ブエンディア大佐は、父親のお供をして初めて氷というものを見た、あの遠い日の午後を思い出したに違いない。」G・ガルシア=マルケス『百年の孤独』(鼓直(つづみただし)訳)序文より。
コロンビアを代表するノーベル文学賞作家、G・ガルシア=マルケスによる『百年の孤独』には、蜃気楼の村マコンドで、生まれて初めて氷を目にした少年の姿が、マジックリアリズムと呼ばれる文学手法で鮮やかに描かれている。この印象的なシーンからインスピレーションを受け、大阪・関西万博のコロンビアパビリオンでは『ICE CUBE』をコンセプトとして、様々な角度の多数の半透明キューブで構成されたファサードデザインが動きとアーティキュレーションを表現している。このファサードが来館者に示すコロンビアとアイスキューブの意外な関連性は、来館者が館内を進むうちに次第に明らかになっていく。
『ICE CUBE』は半透明のポリカーボネート板によって作られ、色彩をコントロールできるライトアップによって様々な表情を見せる。これにより、万博の開催期間中は日中帯から夜間まで来訪者の目を楽しませ、コロンビアの文化を発信する装置としての役割を果たす。更にパビリオンの中に入ると、エントランスホールに計画されたバーカウンターでは、コロンビアの特産品であるコーヒーを楽しむことができる。
万博パビリオンの仮設建築物という特性から、短工期、ローコスト、リサイクル可能な建築を目指し、本体建物構造はプレファブリケーションのスチールハウスとし、また、敷地の軟弱地盤への対応として基礎形式は浮き基礎を採用した。
スチールハウスによるシンプルなボックスの大空間は様々な展示計画に対応することができ、浮き基礎のため掘り込んだスペースの一部は空間を有効活用し、メザニンフロアのバックエリアを計画した。物語を編むように創作されたファサードデザインと、実務的な合理性と環境への配慮を追求した本体建物、二つの異なる思想が組み合わさったコロンビアパビリオンは、様々な文化が交わる場としての万博の会場にふさわしい、印象に残る存在になるだろう。
最後に、モジュール式のプレファブ軽量鉄骨構造を採用したもう一つの理由として、建設期間を早めるだけでなく、万博の閉幕後もパビリオンを存続させるビジョンがあったことがある。この特徴的な構造は様々な環境への適応性があり、万博会場を超えたより恒久的な利用へのシームレスな移行を可能にする。このパビリオンの次なる旅路を定めるための話し合いはすでに始まっている。

-
Location : Osaka, JAPAN
Type of Program : Expo Pavilion
Owner/Client : ProColombia
Design Period : April ~ July 2024
Construction Completion: April 2025
Site Area : 875,89 sqm
Footprint Area : 513,42 sqm
Total Floor Area : 584,44 sqm
Structure : Prefabricated lightweight modular structure
-
Lead Architect : MORF Inc.
Design Support: AA-DC
Structural Design: Ando Imagineering Group (AIG) - External Façade
General Contractor : Sakane Sangyou Inc.
Modular Structure Contractor: NS Hi-Parts
Landscape Design & Construction: 1moku Landscape Design & Research
-
敷地 : 大阪, 日本
プログラム : 万博パビリオン
施主 : ProColombia
設計期間 : 2024年4月~7月
竣工予定 : 2025年4月
敷地面積 : 875,89 ㎡
建築面積 : 513,42 ㎡
延床面積 : 584,44 ㎡
構造 : モジュール式プレファブ軽量鉄骨構造
-
建築設計 : 株式会社MORF建築設計事務所
協力事務所: AA-DC
構造設計 : 株式会社 ANDO Imagineering Group–ICE CUBE ファサード
施工 : 阪根産業株式会社
システム建築:NSハイパーツ株式会社
ランドスケープ:1moku design & Research
